Details:
* Compatible with a programming card to change and set parameters easily and conveniently
* Super fine and smooth touch of speed controlling, first-rate accurate linearity
* Soft Start-up mode and Constant RPM mode (Governor mode)
* adjustable F3A brake.
* 3 steps adjustable regular back EMF brake.
* High capability of anti-interference
* Low-voltage cut-off protection for per cell battery
* Under-voltage cutoff
* Under-voltage can be disabled
* Under-voltage with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
* Variable cutoff voltage / cell
* Slow down instead of cutoff
* Active freewheeling circuit
* LED status display
* Timing of motor ranges from 0° to 30°
* Blocked rotation protection
* Reversible rotation direction
* Over-temperature protection and Overload alarm
* Anti sparkling circuit: reduces connection sparkles(for HV ESC)
* Throttle signal lose protection. When the signal loses for 3 seconds, the power will automatically cut off.
* Safe power-on. The motor won’t start no matter which position the throttle stick is when battery connected
***This series ESC can be compatible with both helicopter and airplane.***
Contact information
Contact: Mike
Mobile: +8615602904669
Telephone: (86)755-28243629
Mail: sales-jane@sunrisemodel.com
Fax: 0755-2843-7034
Address: 4th Floor, Building 8, Third Park, Xinsheng Science and Technology Park, Longgang District, Shenzhen
ICE

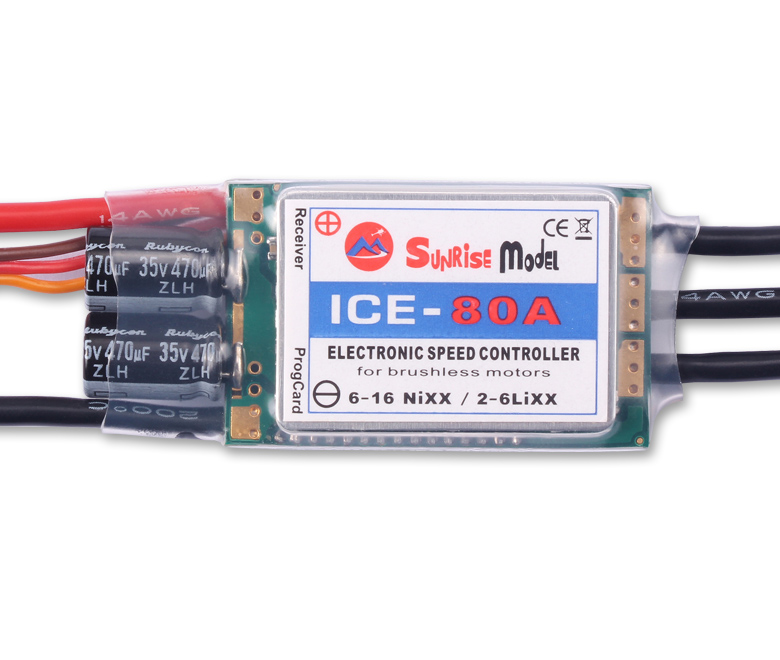

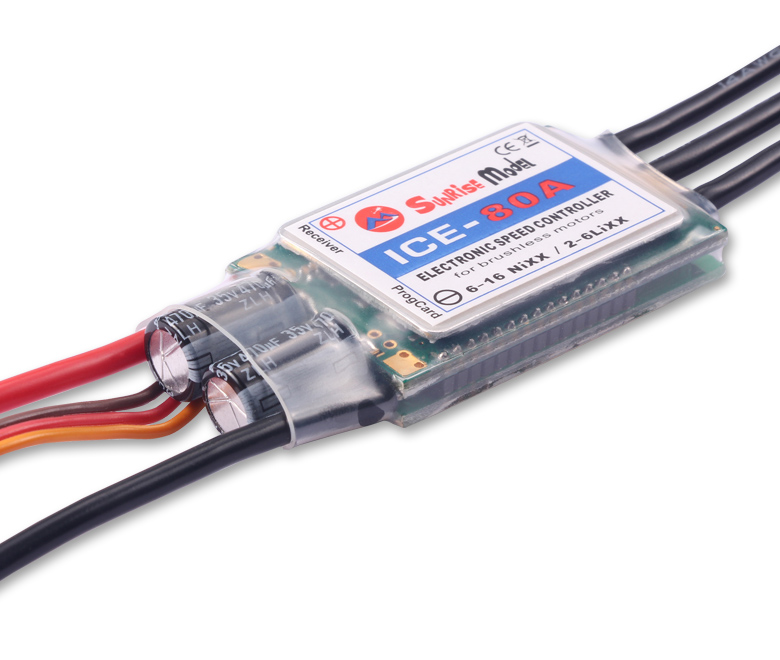

Model: ICE 80A ESC
Constant Current: 80A
Max Current: 100A for 10 seconds
Input Voltage: 2-6 cells Li-XX, or 6-16 Ni-MH/Ni-Cd
BEC Output: 5.5V/6A
PWM: 8-16 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
PCB Size: 50MM*30MM
Weight: 58g
- ICE series ESC Manual.PDF
- ICE series ESC Manual.ZIP
